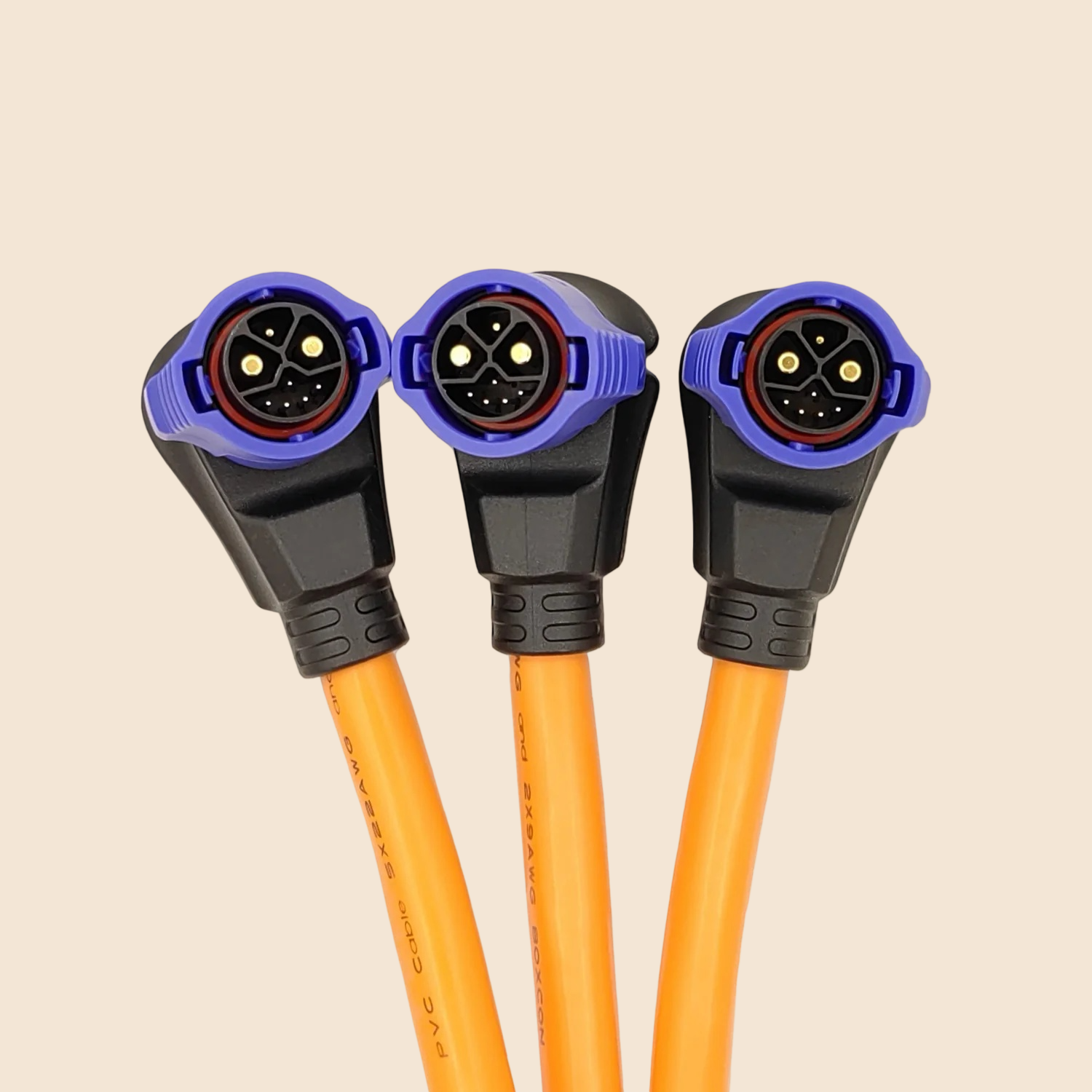

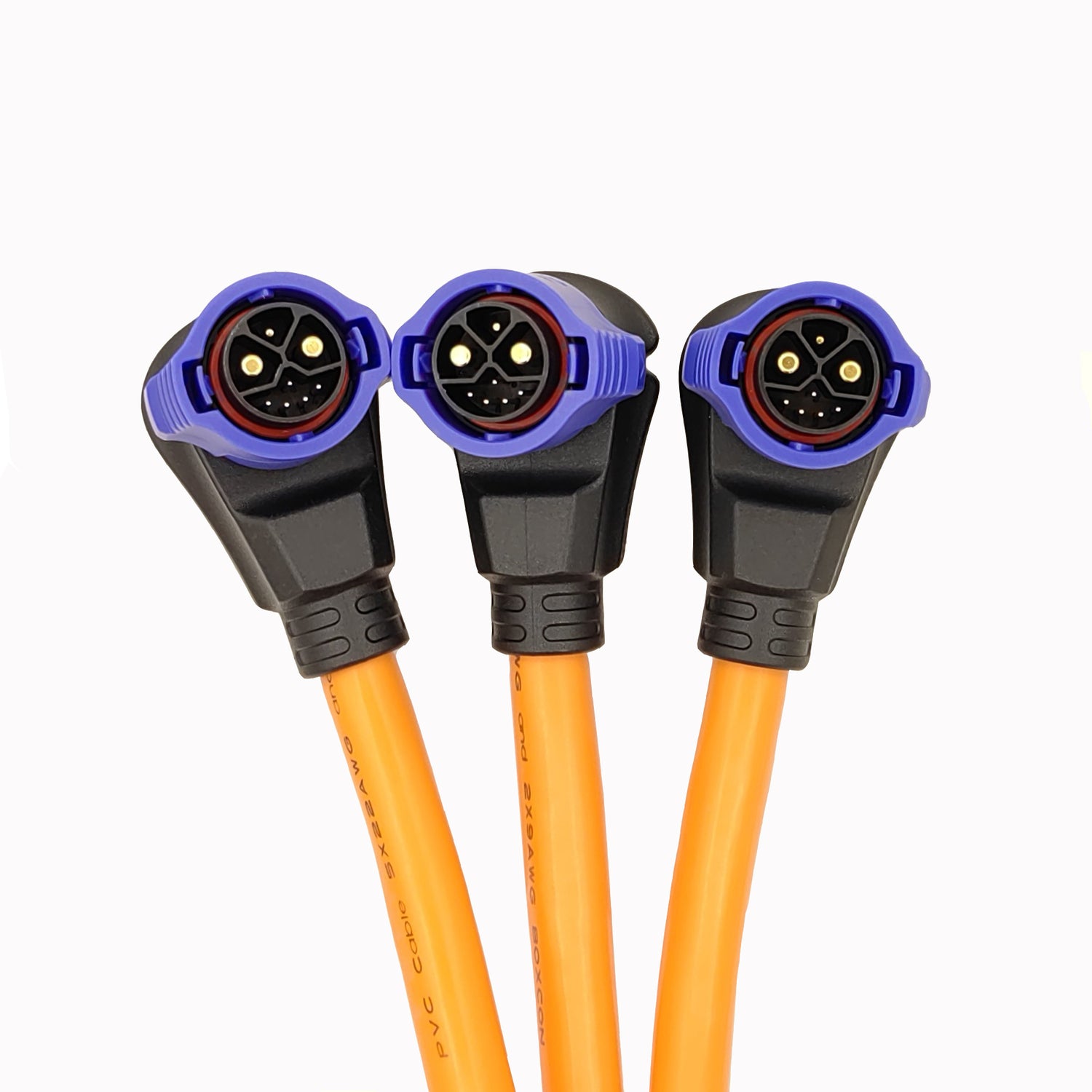

Jnicon M23 50A Push‑Lock Right Angle Connector – A High‑Current Power & Signal Hybrid Solution Designed for New Energy Vehicles and Energy Storage Systems.

The Jnicon M23 2+1+5‑pin right‑angle connector is a high‑performance hybrid connector that combines power delivery and signal transmission. It is specifically engineered for electric two‑wheelers, electric motorcycles, energy storage devices, and lithium‑battery charging systems. The 8‑pin configuration consists of **2 high‑current power pins, 1 middle pin, and 5 signal pins**, supporting up to **50A** current and simultaneous multi‑channel signal communication.

This assembly comes with a **9AWG yellow‑jacketed cable** (700mm on the socket side + 250mm on the wire side) and features a **push‑lock (Push‑Lock) self‑locking mechanism** for quick mating and secure connection.

Key Features

• 🔌 2+1+5 Pin Hybrid Configuration

- **2 power pins** – carry up to 50A for main power supply
- **1 middle pin** – used for grounding or auxiliary power
- **5 signal pins** – for BMS communication, temperature sensing, and control signals
- The 8‑pin design enables **simultaneous power and data transmission**, meeting the intelligent management needs of lithium batteries.

• 💧 IP67 Waterproof & Dustproof

- Total protection against dust; withstands **immersion in 1 metre of water for 30 minutes**
- Equipped with a silicone/rubber sealing ring
- Suitable for outdoor rainy conditions, humid environments, and harsh working sites.

• 🛡️ Anti‑Spark Design

- Built‑in pre‑charge resistor circuit that suppresses inrush current during mating/unmating
- **Prevents sparking** during connection and disconnection, protecting both the connector contacts and the electronic equipment
- Extends service life and enhances **safety during outdoor charging**.

• ⚡ High Current Capacity

- Rated current: **50A** (power pins)
- Rated voltage: **300V + 60V**
- Supports fast charging for high‑power EV batteries.

• 🔒 Push‑Lock Self‑Locking Mechanism

- **Quick connect/disconnect** – one‑hand operation, no rotation needed
- **Audible click** confirms proper locking
- Anti‑slip housing design, **vibration‑proof and secure**.

• 🧵 9AWG Yellow Jacketed Cable

- **9AWG (approx. 6.6 mm²)** – heavy‑gauge wire for high current with low heat generation
- **High‑visibility yellow jacket** for easy identification and safety maintenance
- Operating temperature range: **‑40°C ~ 105°C**.

• 🔥 UL94‑V0 Flame Retardant

- Housing made of **PA66 nylon / thermoplastic**, rated UL94‑V0
- No dripping and non‑flammable under high temperatures, ensuring **charging safety**.

• 🏅 International Approvals

- Certified to **UL, TUV, CE, RoHS, CCC** standards.

Technical Specifications

Applications

🚲 New Energy Electric Vehicles
- Electric two‑wheelers / electric tricycles
- Electric motorcycles (E‑Motorcycle)
- Electric scooters (E‑Scooter)
- Shared e‑bikes

🔋 Energy Storage & Battery Equipment
- Lithium‑battery charging / discharging interfaces
- Energy storage power systems
- Battery swap cabinet connectors
- Portable power stations / emergency power supplies

🏭 Industrial & Professional Equipment
- Industrial automation equipment
- Stage lighting / power amplifiers & speakers
- LED lighting
- 5G communication base stations

☀️ Renewable Energy Systems
- Solar inverters
- Photovoltaic enclosures

Installation Guide

1. **Strip the cable** – remove about 20–23 mm of the outer jacket from the 9AWG cable.
2. **Solder or crimp** – attach the wire cores to the corresponding contacts.
3. **Insert into housing** – place the contacts into the connector shell according to the 2+1+5 pin arrangement.
4. **Push to lock** – push the plug into the mating receptacle until you **hear a “click”** – that confirms proper locking.
5. **Check** – gently tug the cable to ensure a secure connection.

Why Choose Jnicon?

- **50+ patents** – including invention, utility model, and design patents
- **International certifications** – UL, TUV, CCC, CE, RoHS
- **10+ years of experience** – founded in 2013, specialised in waterproof connector R&D and manufacturing
- **OEM / ODM support** – custom design, tooling development, and tailored solutions
- **Global export** – products sold to the USA, Europe, Southeast Asia, and beyond.

Packaging & Shipping

- **Packaging** – PE bag / carton
- **Lead time** – 7–30 working days after receipt of deposit
- **Customisation** – logo printing, colour options, cable length adjustment available upon request.

⚠️ Important Notice

> This product is a high‑current power connector. Installation and use should be carried out by qualified electrical technicians. Please verify that the voltage and current ratings match your equipment before use, and ensure the connection is secure to avoid poor contact that may cause overheating.

Overview

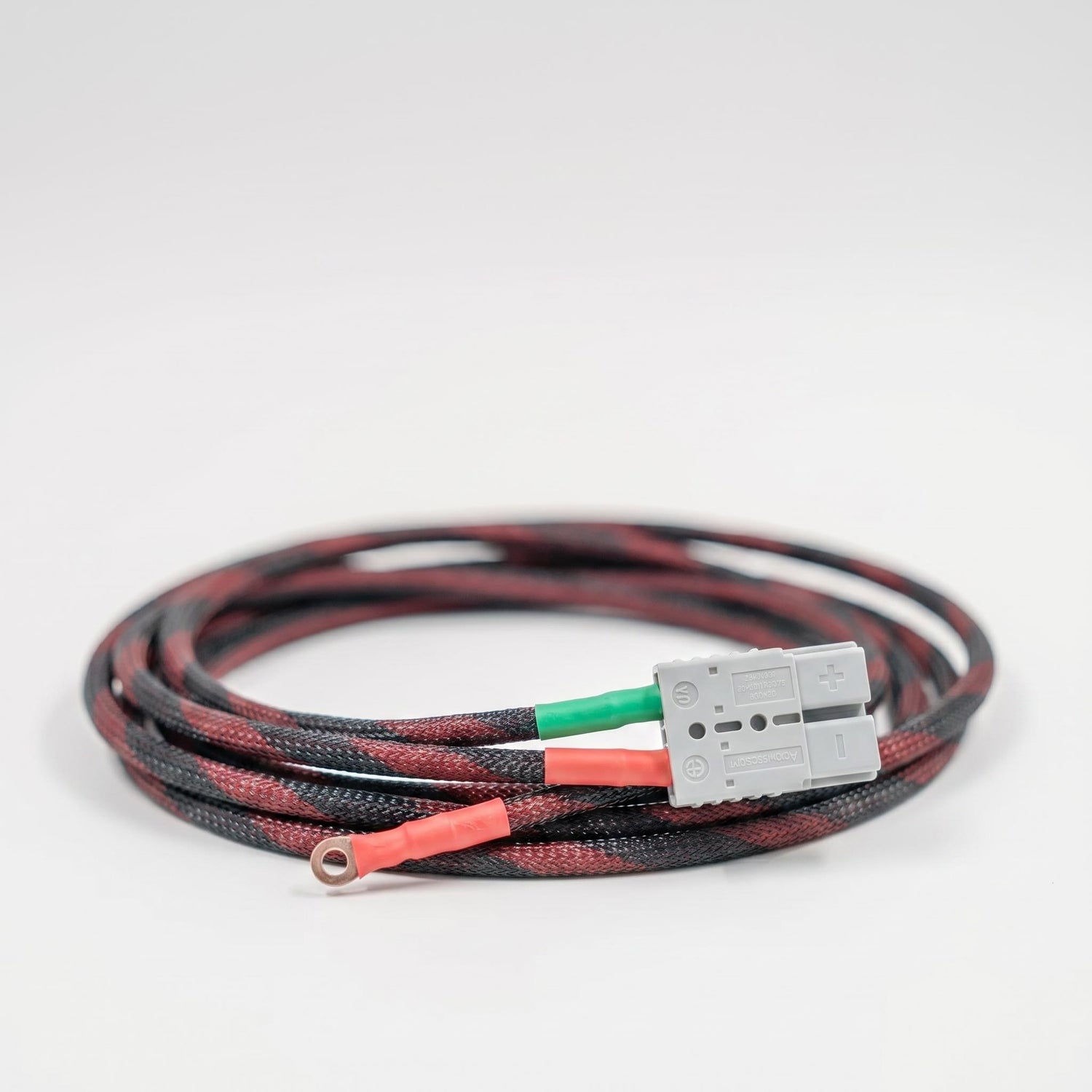

• The Anderson SB50 is the industry standard DC power distribution and battery connection solution widely used across North America. Designed with integrated polycarbonate housing, it features a no-gender self-mating design that allows two identical plugs to connect directly, eliminating the need for separate male and female terminals. The high wear-resistant braided jacket and high conductivity terminals deliver long-lasting reliable performance even under heavy daily use.
• This versatile connector works perfectly for 6V12V24V48V systems, covering most common DC power scenarios. It is ideal for electric forklifts, golf carts, mobility scooters, lead acidlithium battery packs, UPS systems, solar panel arrays, energy storage systems and industrial material handling equipment. No extra modification required, follow the 4-step installation guide to finish wiring in minutes. All products meet official Anderson specification to maintain full ULCSA certification performance.

Specification Overview

• Rated Current 50A (Hot Plug), 120A (UL 1977 Wire to Wire)
• Rated Voltage 600V DC  AC
• Supported Wire Gauge 16 AWG to 6 AWG (1.3mm² to 13.3mm²)
• Contact Resistance ≤0.2 milliohm

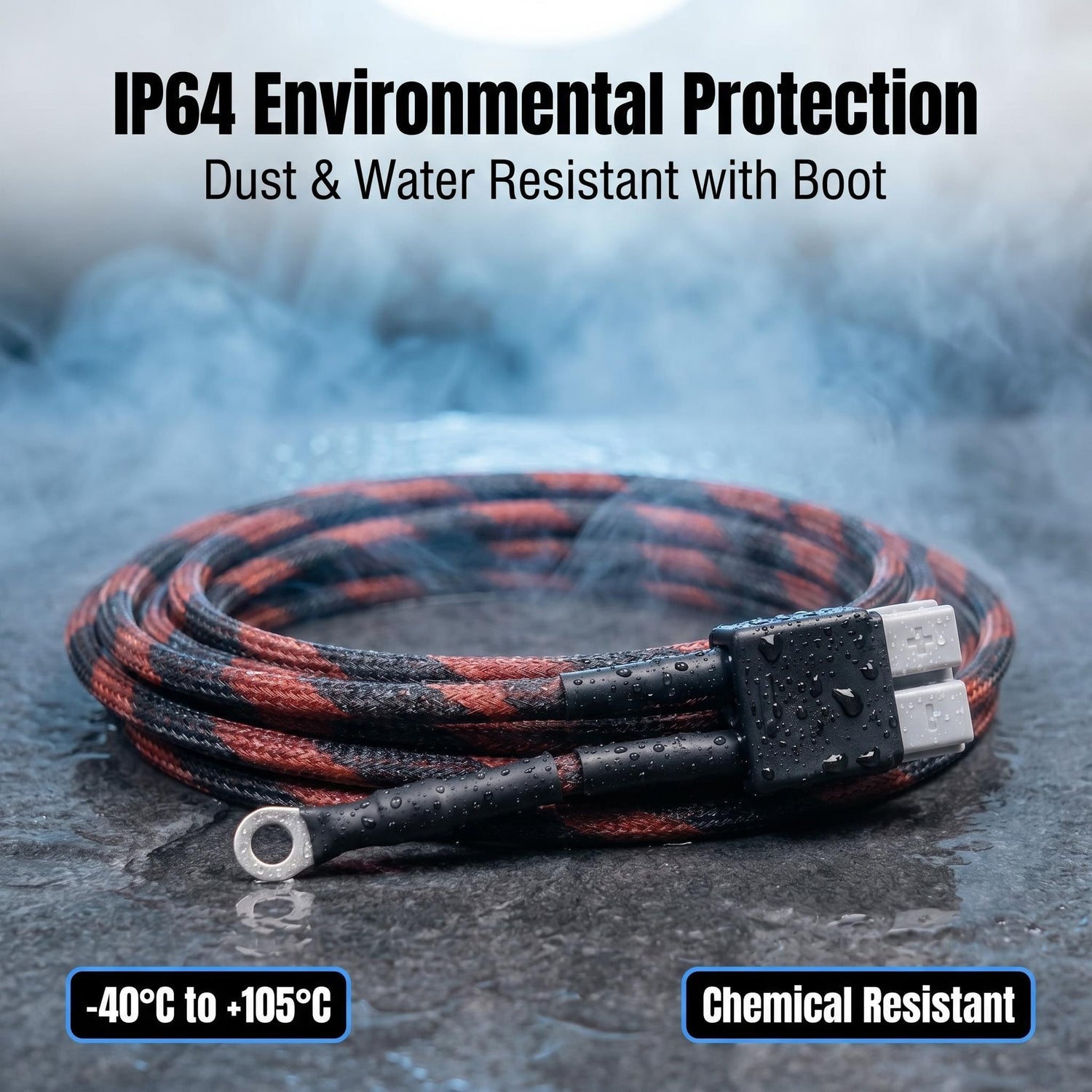

• Ingress Protection IP64 (with environmental boot)
• Operating Temperature -40°C to +105°C
• Insertion Life 10000 times
• Flame Retardant Rating UL94 V-0
• Certifications UL, CSA, RoHS

Overview

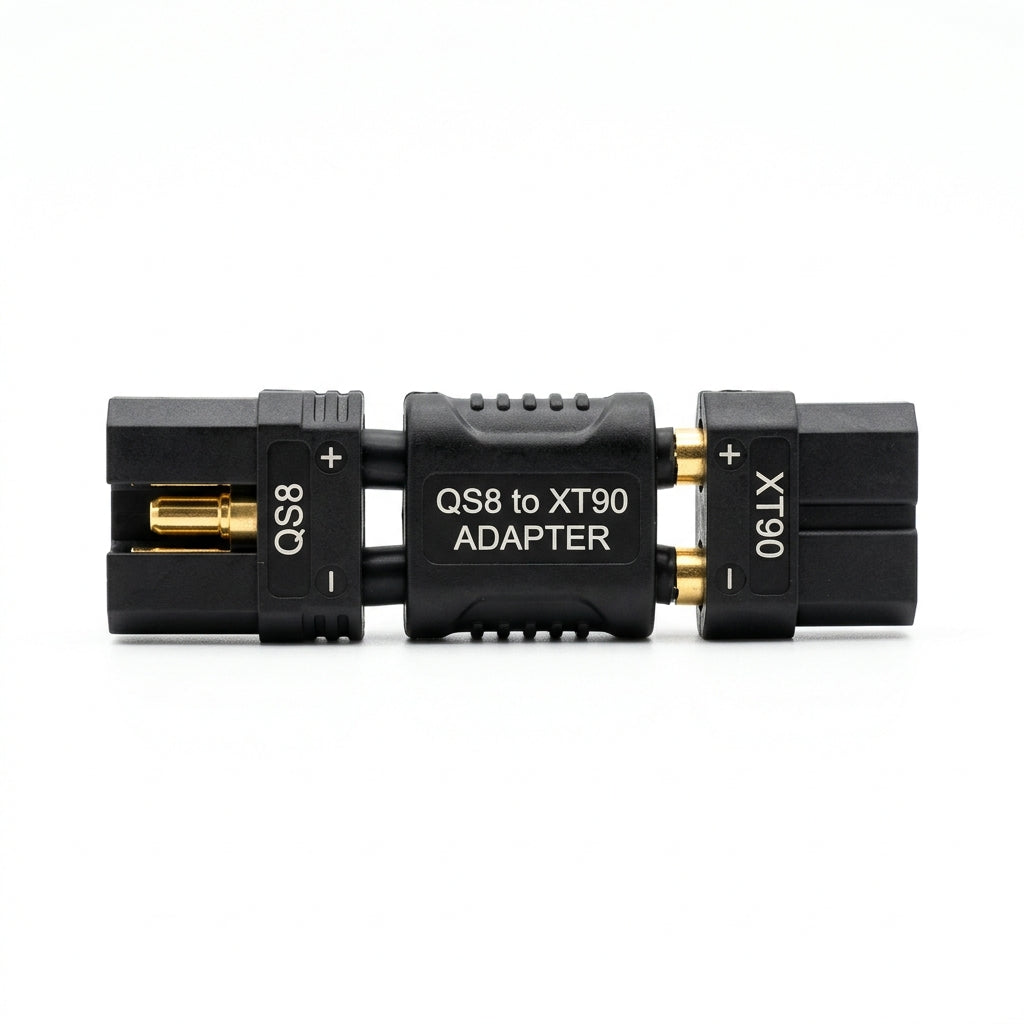

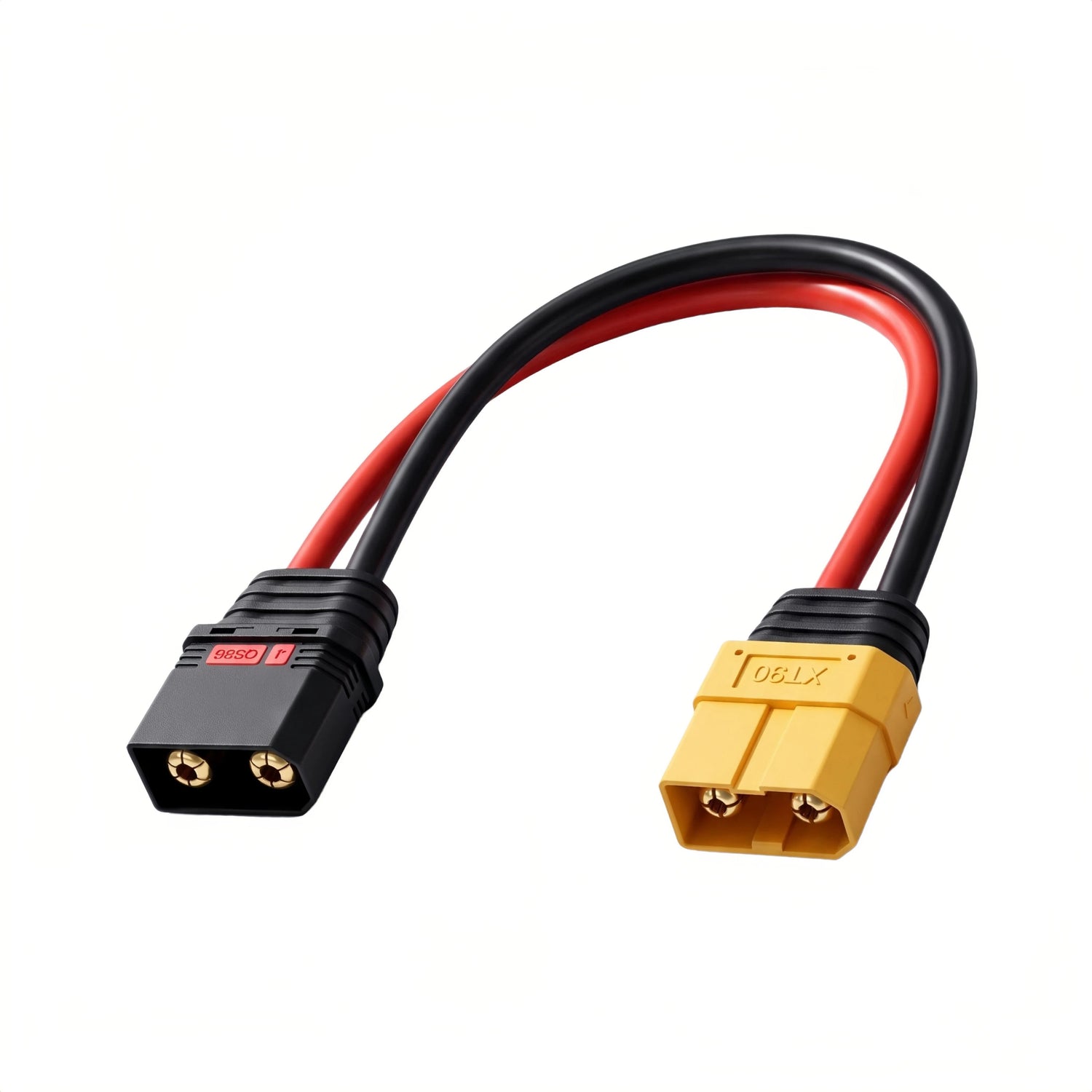

Effortlessly bridge QS8-S and XT90 systems with this high-performance adapter cable. Designed for serious power enthusiasts, this QS8-S Male to XT90 Female extension cable delivers reliable, high-current connections between batteries, ESCs, chargers, and other power-hungry devices. Whether you're building an RC model, upgrading an eBike, or setting up a UAV power system, this cable ensures seamless compatibility and uncompromised performance.

Key Features

⚡ High Current Capacity – 45A Rated / 90A Peak
The XT90 connector side delivers **45A continuous** and **90A peak current**. The QS8-S side is rated for **110A continuous / 180A peak**, making this adapter cable the perfect bridge for high-power systems where every amp counts.

🛡️ Anti-Spark Technology – Protect Your Gear
Sparking battery connections are the biggest enemy to your electronics. Our cable features **built-in anti-spark circuitry** that eliminates dangerous sparks when plugging into high-power systems. The integrated resistor allows capacitors on controllers to charge with controlled current, preventing connector damage and extending component lifespan.

💧 IP67 Waterproof & Dustproof
Engineered for demanding environments, this cable meets **IP67 waterproof and dustproof** standards – fully protected against dust ingress and temporary immersion in water. Perfect for outdoor RC, marine applications, and all-weather eBike use.

🔌 Premium Materials – Built to Last
- 10AWG Silicone Wire – Ultra-flexible, high-strand tinned copper with -40°C to +200°C temperature tolerance
- Gold-Plated Brass Contacts – Superior conductivity, low resistance, anti-oxidation
- Nylon-Fiber Composite Housing – UL94 V-0 flame retardant rated for extreme safety
- Heavy-duty abrasion-resistant jacket – Durable enough for repeated plug/unplug cycles

Overview

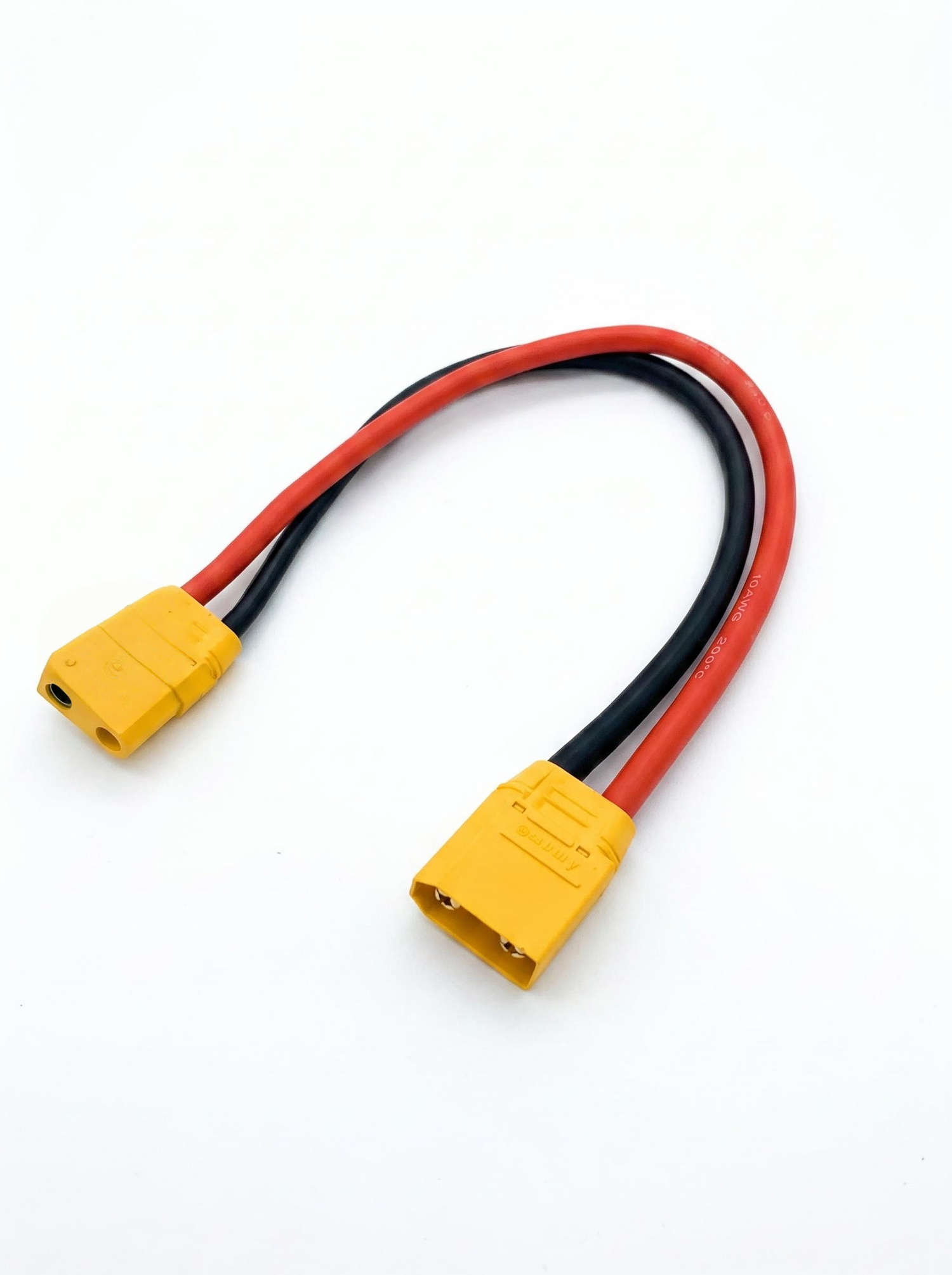

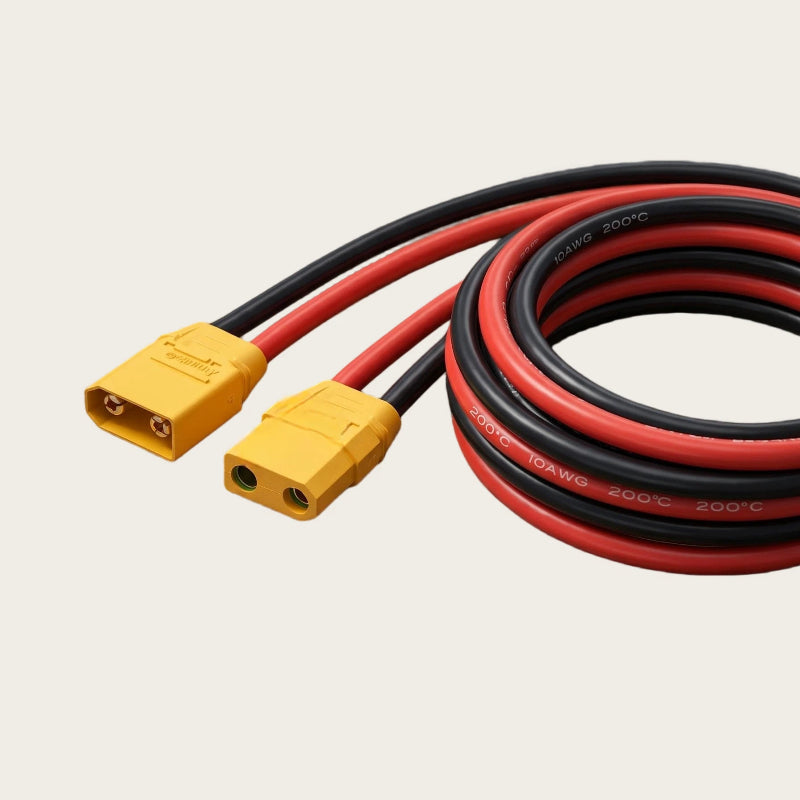

Upgrade Your Power Connection with XT90‑S Anti‑Spark Extension Cable

The XT90‑S Extension Cable is a premium‑grade power connection solution designed for high‑performance RC models, drones, UAVs, and electric vehicles. Featuring genuine Amass XT90‑S Anti‑Spark connectors with 10AWG ultra‑flexible silicone wire at 50cm length, this cable delivers reliable, spark‑free power transmission for demanding applications.

Whether you’re connecting your LiPo battery to an ESC, charging your drone batteries, or building a custom power distribution system, this extension cable ensures safe, efficient, and durable performance every time.

Key Features

⚡ Anti‑Spark Technology – Protect Your Connectors

The XT90‑S is the **upgraded version of the standard XT90 connector, featuring a built‑in resistor that prevents dangerous sparks when connecting power. This two‑stage connection design eliminates the “pop” and flash that can damage connectors over time, extending the lifespan of both your cable and your equipment.

🔌 Genuine Amass XT90‑S Connector – 100% Authentic

Each cable is equipped with 100% genuine Amass XT90‑S connectors – not cheap knockoffs. The 4.5mm gold‑plated banana plugs ensure solid, reliable connections with low contact resistance and excellent conductivity. The high‑temperature nylon housing withstands extreme conditions, while the gold‑plated spring pins maintain consistent pressure for thousands of insertions.

💪 10AWG Silicone Wire – Heavy‑Duty Power Delivery

The cable features 10AWG (5.26mm²) stranded tinned copper wire with ultra‑soft silicone insulation. This combination offers:
- Low DC resistance (≤3.28 mΩ/m) for minimal power loss
- Exceptional flexibility – bends easily in tight spaces
- Wide temperature range: -60°C to +200°C
- High current capacity: 90A continuous / 120A peak

💧 IP67 Waterproof & Durable Construction

The nylon housing and sealed silicone insulation provide IP67‑level protection against dust and water immersion, making this cable suitable for outdoor and wet‑environment applications.

🔥 High Temperature Resistance

Built with high‑temperature nylon and silicone insulation, this cable maintains performance even under extreme thermal stress – perfect for high‑current, high‑heat applications.

Specifications

Installation Tips

⚠️ Important Usage Notes:
> 1. Polarity Check: Always connect Red to Positive (+) and Black to Negative (–) to avoid short circuits.
> 2. Two‑Stage Connection: The XT90‑S features a two‑stage anti‑spark design – insert slowly to allow the built‑in resistor to pre‑charge the circuit before full engagement.
> 3. Secure Connection: Ensure the connector is fully inserted until you hear/feel it click into place.
> 4. Cable Management: Avoid sharp bends near the connector base to prevent stress on solder joints.
> 5. Not a Magic Fix: While XT90‑S reduces spark damage, it does not fix undersized wire, poor solder joints, or excessively long cable runs.

Package Includes

- 1 × XT90‑S Male Connector (pre‑wired with 10AWG silicone cable)
- 1 × XT90‑S Female Connector (pre‑wired with 10AWG silicone cable)
- Total cable length: 50cm (25cm on each side)
